How to adjust the operation interface of pneumatic punch

With the rapid development of the manufacturing industry, pneumatic punch, as important stamping equipment, play a key role in various fields such as metal processing and plastic products. Recently, the adjustment technology of punch press operation interface has become a focus of attention both inside and outside the industry. The following is a detailed explanation of how to adjust the operation interface of pneumatic punch:


1. Operation mode selection

pneumatic punch usually have two operating modes: manual and automatic.
Manual mode: used for assembling and debugging molds. In manual mode, the operator can control the descent and ascent of the cylinder, as well as the pressurization and release of the cylinder, by pressing the manual button switch.

Automatic mode: used for normal production. In automatic mode, the pneumatic punch will perform continuous stamping operations according to preset parameters. The operator only needs to activate the dual button (or foot switch) to control the descent and ascent of the cylinder.

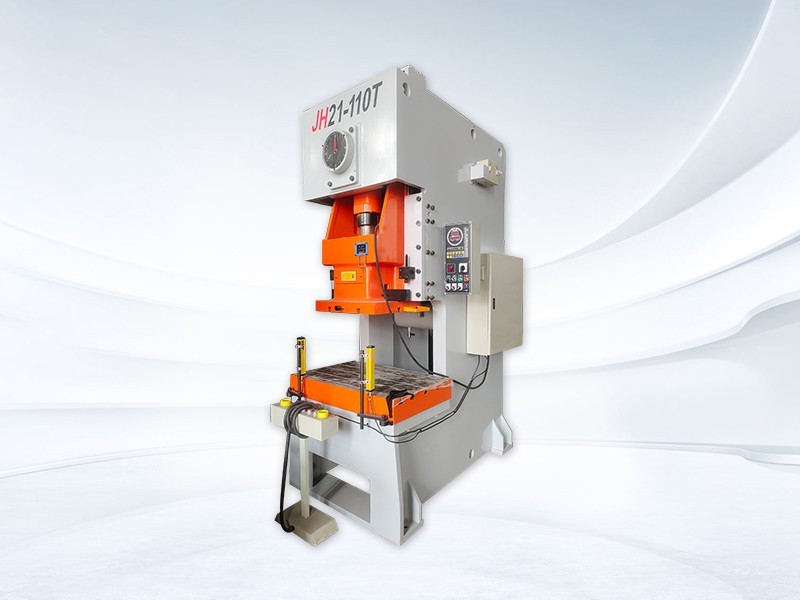

pneumatic punch


2. Cylinder stroke adjustment

The adjustment of cylinder stroke can be achieved by adjusting the adjustable nut on the cylinder piston rod.

Step: First, loosen the screw that secures the adjustable nut; Then, move the adjustable nut up and down to adjust the stroke of the cylinder; Finally, re secure the adjustable nut.


3. Pressure regulation

The pressure regulating device is usually located next to the main air pipe of the machine.

Method: Increase or decrease pressure by turning the knob on the pressure regulating device clockwise or counterclockwise. The specific required pressure value should be determined based on the requirements of the processed product and the design of the mold.


4. Speed regulation

A manual speed control valve is installed on the air pipe of the cylinder to regulate the descent speed of the cylinder.

Method: Slow down or increase speed by manually turning the knob on the speed control valve clockwise or counterclockwise. The adjustment of speed should be based on the requirements of production efficiency and product quality.


5. Other adjustment matters

Slide height adjustment: Some pneumatic punchs have a slide height adjustment function, which can be adjusted by turning on the slide adjustment switch and clicking the slide up/down button to adjust the height of the slide.
Counter usage: When it is necessary to record the number of stamping times, the counter knob can be released to the "on" position, and the counter will start counting the number of slider strokes.
Emergency stop button: During operation, if an emergency situation occurs, the emergency stop button can be pressed to immediately stop the operation of the machine tool. Before restarting the operation, this button must be reset.
In summary, the adjustment of the operating interface of pneumatic punchs involves multiple aspects, including selection of operating modes, adjustment of cylinder stroke, pressure adjustment, speed adjustment, and other adjustment matters. When making adjustments, it is necessary to operate according to production requirements and equipment manuals, and ensure that the adjusted parameters meet the requirements of product quality and production efficiency.
